Power washers deliver forceful streams of water to blast away dirt, grime, and stains from surfaces like driveways, vehicles, and siding. Users rely on these machines for efficient cleaning that saves time and effort. At their core, power washers transform ordinary water into high-velocity jets through a coordinated system of mechanical parts.
The key components of a power washer include the motor or engine, which provides power; the pump, which pressurizes water; the boiler or burner system, which heats water in hot-water models; the fuel tank, which stores energy for gas-powered units; high-pressure hoses, which transport the water; the spray gun and lance, which direct the flow; nozzles, which shape the spray; and safety devices and control systems, which prevent accidents and regulate operation. These elements work together to generate pressures from 1,000 to 4,000 pounds per square inch (PSI) and flow rates up to 4 gallons per minute (GPM), enabling effective cleaning without excessive water use.
The Power Source: Motor or Engine
The motor or engine serves as the driving force in every power washer. It converts energy into mechanical motion that powers the pump. Electric motors dominate consumer models for their simplicity and quiet operation, while gas engines power professional units for higher output and portability.
Function and Design Basics
Electric motors use alternating current (AC) from a standard outlet to spin a rotor at consistent speeds, typically 1,700 to 3,450 revolutions per minute (RPM). Gas engines, often four-stroke designs, ignite fuel-air mixtures in cylinders to achieve similar RPMs but deliver more torque for demanding tasks. Both types connect directly to the pump via a shaft or belt, ensuring synchronized operation.
In fluid dynamics terms, the motor’s consistent RPM maintains stable pump strokes, which dictate water flow. Research on high-pressure systems shows that motor efficiency directly influences overall energy transfer, with losses from friction or misalignment reducing output by up to 15 percent.
Interactions with Other Components
The motor couples with the pump to draw water from a garden hose inlet. In gas models, it draws fuel from the tank, while electric versions rely on a power cord. When paired with a boiler, the motor’s output must sustain heating demands without overheating, as excessive loads can strain bearings.
Impact on Cleaning Performance
A robust motor ensures steady pressure and flow, crucial for tackling tough stains like oil or mildew. Higher horsepower (HP) ratings, from 1.5 HP in entry-level units to 13 HP in industrial models, correlate with faster cleaning times. For instance, a 5 HP engine handles 3,000 PSI at 2.5 GPM, stripping paint in minutes where weaker motors falter.
Common Failure Points and Maintenance
Overheating tops the list of issues, often from prolonged use or poor ventilation. Bearings wear out after 500 hours, causing vibrations that damage the pump. Gas engines face carburetor clogs from stale fuel.
Inspect motors weekly: Check for loose belts, clean air filters on gas models, and test electrical connections. Change oil in engines every 50 hours, per manufacturer guidelines. For deeper insights, consult resources like the Cat Pumps High-Pressure System Design Guide, which details motor-pump pairings.
Safety and Efficiency Considerations
Electric motors require ground-fault circuit interrupter (GFCI) outlets to prevent shocks. Gas engines demand proper exhaust venting to avoid carbon monoxide buildup. Efficiency improves with variable-speed motors, which adjust RPM to match load, cutting energy use by 20 percent.

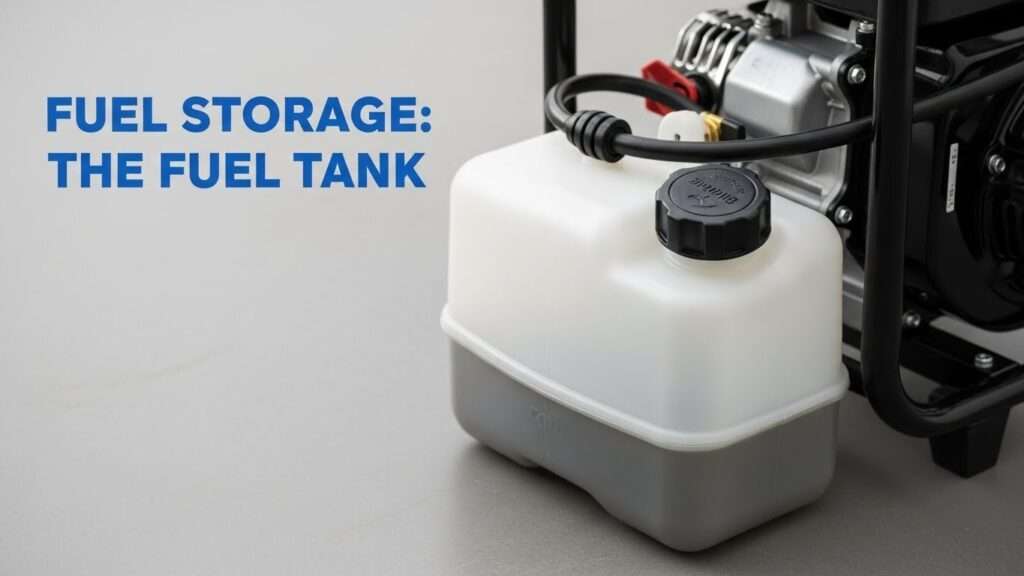

Fuel Storage: The Fuel Tank
Gas-powered power washers rely on a fuel tank to supply combustible energy. This component, absent in electric models, holds gasoline or diesel to keep the engine running during extended sessions.
Function and Design Basics
Tanks range from 0.5 to 1.5 gallons in capacity, made of corrosion-resistant polyethylene or steel. They include vents to equalize pressure and filters to trap debris. Diesel tanks often feature larger volumes for industrial endurance.
Interactions with Other Components
Fuel flows from the tank through lines to the engine’s carburetor, where it mixes with air for combustion. This powers the motor, which drives the pump. In hot-water systems, a stable fuel supply prevents boiler interruptions.
Impact on Cleaning Performance
Adequate fuel enables uninterrupted operation, vital for large jobs like fleet washing. A full tank supports 4-6 hours of runtime, maintaining consistent PSI without dips that weaken cleaning force.
Common Failure Points and Maintenance
Leaks arise from cracked seams or loose caps, risking fire hazards. Sediment buildup clogs lines after 100 hours.
Drain tanks monthly, use fuel stabilizers, and inspect for cracks. Store units upright to avoid spills.
Safety and Efficiency Considerations
Regulations like those from the Occupational Safety and Health Administration (OSHA) mandate spill-proof designs and no-storage near ignition sources. Efficient tanks minimize refueling, boosting productivity.
Read More In Detail: Power Washing VS Regular Pressure Cleaning
The Heart of the Machine: The Pump
The pump pressurizes incoming water, turning a gentle garden hose flow into a high-impact jet. Positive displacement designs, like triplex plunger types, dominate for their reliability in high-pressure applications.
Function and Design Basics
Pumps draw water through an inlet valve, compress it in cylinders via reciprocating plungers or pistons, and expel it through an outlet. Triplex models use three cylinders phased 120 degrees apart for smooth delivery, achieving 3,000-5,000 PSI. Ceramic plungers resist wear, while brass heads dissipate heat.
Fluid dynamics play a key role: Bernoulli’s principle governs pressure buildup, where velocity increases as area narrows, but air entrainment from the inlet can reduce efficiency by 10 percent if filters clog.
Interactions with Other Components
The motor spins the pump’s crankshaft, synchronizing strokes with engine RPM. Water enters cold or preheated from the boiler, and pressurized output feeds the hose. Safety valves bleed excess pressure back to the inlet, protecting the system.
Impact on Cleaning Performance
Pump capacity defines cleaning units (PSI x GPM), with triplex models excelling in steady flow for even coverage. Axial cams suit light duty but falter under load, dropping pressure by 20 percent.
Studies on jet cleaning show that optimal pumps maintain stagnation pressure decay linearly over distance, ensuring effective removal at 5-10 feet standoff.
Common Failure Points and Maintenance
Seal failures from dry running cause leaks after 200 hours. Cavitation from air bubbles erodes plungers.
Prime pumps before use, change oil every 100 hours, and flush with fresh water post-job. For technical specs, review Nilfisk’s stationary pressure washer documentation.
Read More In Detail: What Is Power Washing And How Does It Work
Safety and Efficiency Considerations
Pumps over 3,000 PSI require burst hoses rated to 1.5 times max pressure. Efficiency rises with low-friction designs, reducing motor load.
Heating for Enhanced Cleaning: Boiler or Burner System for Power Washing
Hot-water power washers incorporate a boiler or burner to raise water temperature to 140-200°F, dissolving grease and oils that cold water struggles against.
Function and Design Basics
Coil-style boilers heat water via combustion gases from a diesel or gas burner. Stainless steel coils withstand corrosion, with thermostats controlling flame intensity. Instantaneous heating systems bypass storage tanks for on-demand performance.
Thermal engineering ensures even heat distribution, preventing hotspots that lead to scale buildup.
Interactions with Other Components
Burners ignite fuel from the tank, heating water post-pump or pre-pump. The motor powers ignition fans and controls the link to the spray gun trigger for safety shutoff.
Impact on Cleaning Performance
Hot water boosts detergent efficacy by 30 percent, cutting cleaning time on oily surfaces. It expands contaminants for easier dislodgement, per thermal cleaning studies.
Common Failure Points and Maintenance
Scale from hard water clogs coils after 300 hours, reducing heat transfer. Burner electrodes foul from incomplete combustion.
Descalcify quarterly with vinegar solutions and clean burners annually. Link to our post on hot vs. cold water washers for comparisons.
Safety and Efficiency Considerations
Pressure relief valves prevent explosions, aligning with standards like IEC 60335-2-79. Efficient insulation cuts fuel use by 15 percent.

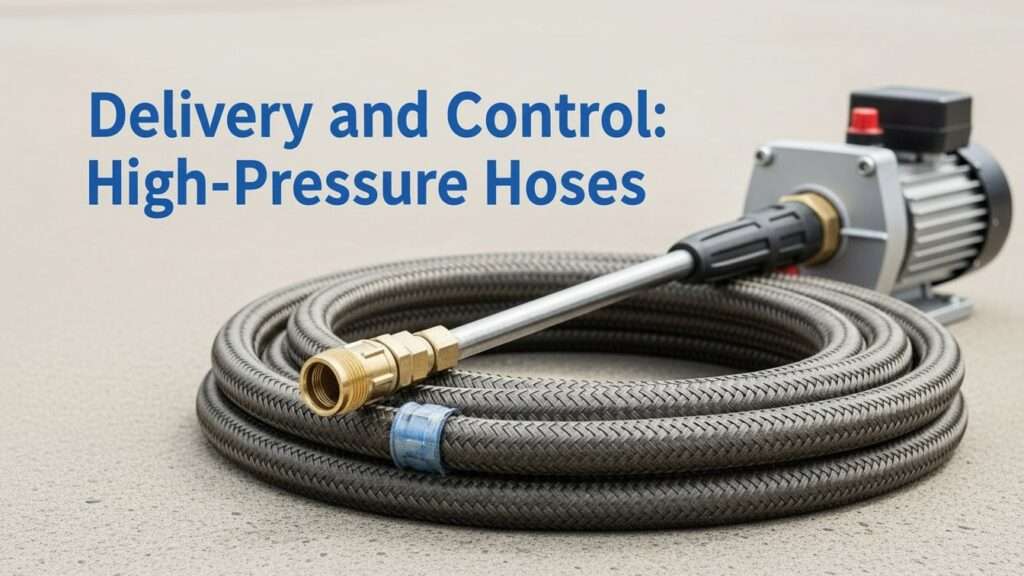

Delivery and Control: High-Pressure Hoses
High-pressure hoses are critical for safely and efficiently delivering pressurized water from the pump to the spray gun. They are designed to withstand the extreme forces generated by power washers, including high pressure, heat, and the physical stress of frequent handling.
Function and Design Basics
High-pressure hoses are typically made of reinforced rubber, thermoplastic, or hybrid composites. These materials provide flexibility while resisting bursts, kinks, and abrasions. To further enhance strength, most hoses feature steel or synthetic wire braiding, which prevents ballooning under high PSI. Hoses are rated for pressures ranging from 5,000 to 7,500 PSI, depending on the model and intended use.
Interactions with Other Components
Hoses serve as the link between the pump outlet and the spray gun inlet, transmitting the full pressurized flow generated by the pump. The hose length, typically 25 to 50 feet, balances reach and mobility with performance; longer hoses can reduce PSI slightly, while shorter hoses are easier to manage in tight spaces.
The hose must also handle temperature variations in hot-water power washers. High temperatures can soften the hose material if it is not rated correctly, potentially leading to leaks or ruptures.
Impact on Cleaning Performance
The hose directly affects cleaning efficiency. A high-quality, properly rated hose ensures consistent flow without pressure drops, even over extended distances or when maneuvering around obstacles. Inconsistent flow due to leaks, kinks, or weak material reduces the impact force of the water, making it harder to remove stubborn dirt, grime, or grease.
Common Failure Points and Maintenance
Hoses experience wear from abrasion, dragging over rough surfaces, or repeated bending, which can damage the outer cover or internal layers. Common signs of wear include bulging, cracking, or visible fraying of the reinforcement braid.
Maintenance tips include:
- Inspect hoses weekly for cracks, bulges, or leaks
- Avoid dragging hoses over sharp edges or hot surfaces
- Store hoses coiled loosely to prevent kinking and deformation
- Flush hoses after detergent use to remove residues that could degrade the material
Replacing hoses promptly when signs of wear appear is critical to prevent sudden bursts, which can be dangerous at high PSI levels.
Read More In Detail: What To Do After Pressure Cleaning
Precision Application: Spray Gun and Lance for Power Washing
The spray gun and lance are essential components that allow operators to safely control and direct the high-pressure water stream. They provide precision, safety, and comfort, enabling effective cleaning across different surfaces.
Function and Design Basics
Spray guns are typically ergonomically designed, featuring comfortable handles, trigger locks, and safety mechanisms to reduce operator fatigue. Lances, usually made of stainless steel or reinforced aluminum, range from 24 to 48 inches in length, extending the user’s reach without reducing water pressure.
Many modern guns incorporate adjustable nozzles or variable flow triggers, allowing users to modulate pressure and spray pattern directly from the handle. This adaptability is crucial when switching between delicate surfaces like vehicles and tough areas like concrete driveways.
Interactions with Other Components
Spray guns connect directly to high-pressure hoses and accept a variety of nozzles to create different spray angles and patterns. In some models, the trigger interacts with motor or pump controls, enabling variable speed operation. This integration allows the user to adjust water pressure on the fly without turning off the machine, enhancing precision and efficiency.
Lances also play a role in safety and ergonomics. By extending reach, they keep the operator at a safe distance from the high-pressure stream, reducing the risk of injury or accidental contact with surfaces.
Impact on Cleaning Performance
The combination of a spray gun and lance has a significant impact on cleaning efficiency and quality. Adjustable lances allow users to target specific areas with pinpoint accuracy, reducing wasted water and minimizing the risk of surface damage. Ergonomic handles and trigger systems reduce fatigue during prolonged cleaning tasks, which helps maintain consistent performance throughout long sessions.
Read More In Detail: Standard Pressure Cleaning Workflow

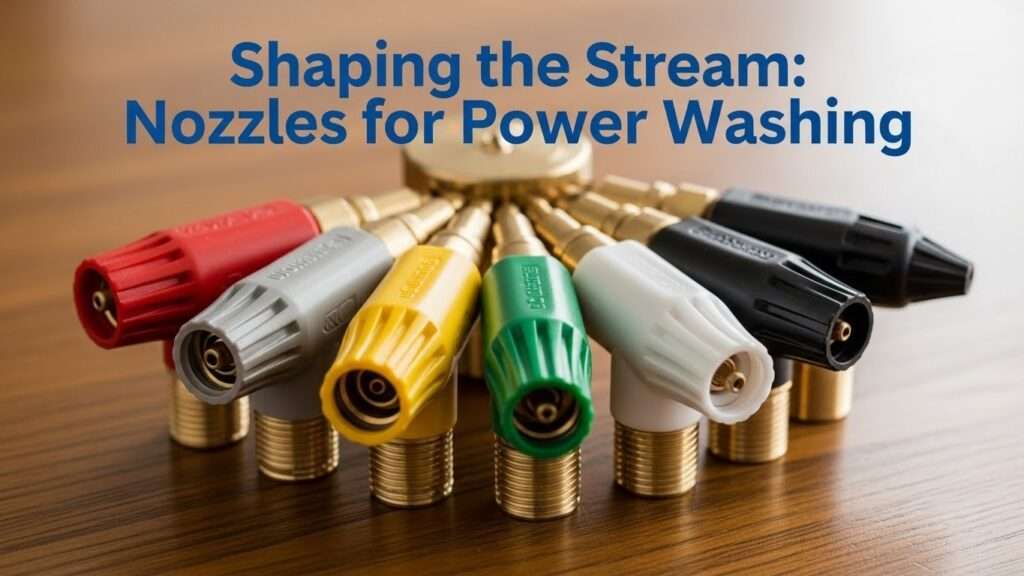

Shaping the Stream: Nozzles for Power Washing
Power washing nozzles are the “control point” that turns raw pressure into a usable cleaning pattern. By changing the spray angle and flow, a nozzle controls how concentrated the water hits the surface, how wide the coverage is, and how safely you can work on delicate materials. Most tips are color-coded: a 0° nozzle delivers a pencil-thin jet for stubborn buildup (high risk on paint and wood), 15° is a strong stripping spray for heavy grime, 25° is a balanced all-purpose rinse and clean, and 40° is a gentler wide fan for final rinsing and softer surfaces.
Function and Design Basics
Brass or stainless tips with color-coded orifices control angle and flow. Quick-change systems speed swaps.
Interactions with Other Components
Nozzles screw onto lances, converting hose pressure into patterned jets.
Impact on Cleaning Performance
A 25-degree nozzle balances force and coverage, optimizing GPM use.
Common Failure Points and Maintenance
Erosion widens orifices after 200 hours.
Flush after detergent use.
Safety and Efficiency Considerations
Avoid 0-degree tips on skin; they penetrate deeply.
Safety and Control Systems: Safeguarding Power Washer Operation
Explore the essential safety and control systems designed to protect both operators and equipment during power washer use. This guide covers emergency shut-offs, pressure regulators, automatic sensors, and operational protocols that ensure safe, efficient, and reliable cleaning performance in residential, commercial, and industrial settings.
Function and Design Basics
Unloader valves bypass flow when triggered, maintaining pump prime. Sensors monitor temperature and pressure.
Interactions with Other Components
Valves loop back to pump inlets; controls integrate with motors and boilers.
Impact on Cleaning Performance
They ensure consistent operation without surges.
Common Failure Points and Maintenance
Stuck valves cause overheating.
Test quarterly.
Safety and Efficiency Considerations
Comply with UL 60335-2-79 for certifications. See OSHA Pressure Washer Safety Tips for protocols.
Control Systems and User Interfaces for Power Washers
Control systems include switches, gauges, and thermostats for managing power, pressure, and temperature. Digital panels display PSI, GPM, and runtime.
The system wires to the power source and sensors on the pump and heating unit, providing real-time feedback. It interacts with safety valves for automatic shutdowns.
User interfaces enhance precision, leading to better cleaning outcomes. Safety integrates alerts for low oil or high heat, and efficiency is optimized through variable settings.

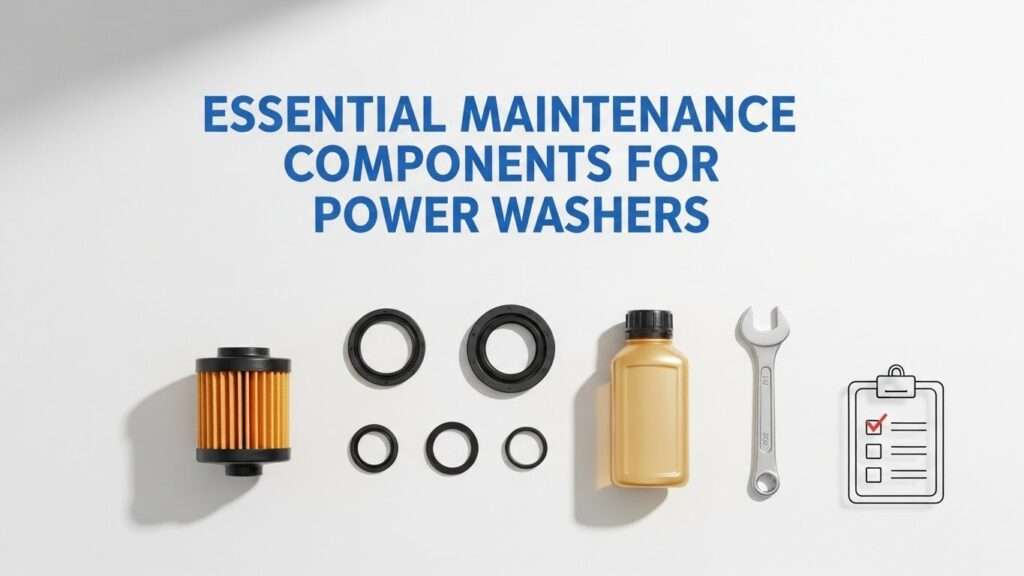

Essential Maintenance Components for Power Washers
Maintenance focuses on filters, seals, and oil reservoirs. Inlet filters trap debris, seals prevent leaks in pumps and hoses, and oil lubricates moving parts.
These components interact daily: Filters protect the pump, seals maintain pressure integrity. Regular replacement ensures longevity.
Neglect impacts performance, causing reduced flow or failures. Safety avoids hazards like fluid sprays, and efficiency sustains high output.
Common Failures and Performance Dependencies in Power Washers
Common failures include pump seal wear from dry running, hose cracks from UV exposure, and nozzle clogs from minerals. Performance depends on clean water supply and matched components.
Failures often stem from interactions: Overheated pumps damage seals without thermal relief. Dependencies like power source strength affect pump output.
Addressing these extends equipment life and ensures consistent results. Safety checks identify issues early, and efficiency relies on proactive repairs.
Nozzles and Spray Mechanisms
Nozzles control the water stream’s shape and intensity, with color-coded tips indicating angles: Red (0°) for pinpoint blasts, yellow (15°) for stripping, green (25°) for general cleaning, white (40°) for rinsing, and black for detergent.
The nozzle attaches to the wand, restricting flow to increase velocity. It interacts with the pressure regulator to fine-tune output and the detergent system for low-pressure applications.
Spray patterns affect results: Narrow angles concentrate force for tough stains, while wide fans cover areas quickly without damage. Safety involves selecting appropriate angles to avoid kickback, and efficiency comes from matching nozzles to surface types.
Frequently Asked Questions
1. What personal protective equipment (PPE) do I need for power washing?
Wear safety goggles, gloves, non-slip boots, and hearing protection. For pressures over 2,000 PSI, add face shields to guard against ricochet.
2. How often should I maintain my power washer pump?
Change pump oil every 100 hours or three months. Inspect seals and filters weekly to prevent cavitation.
3. What causes a power washer to lose pressure suddenly?
Clogged nozzles, worn pumps, or kinked hoses are often the culprits. Check inlet filters first.
4. Are hot-water power washers better for heavy grease?
Yes, temperatures up to 200°F dissolve oils 30 percent faster than cold water, per cleaning efficiency studies.
5. How do I winterize a gas-powered power washer?
Drain fuel, run stabilizer-treated gas, and store dry. Flush the pump with antifreeze.
6. What is the difference between axial and triplex pumps?
Axial pumps suit light residential use with simpler designs. Triplex offers higher PSI for pros, with smoother flow.
7. Can a power washer hose burst, and how do I prevent it?
Yes, from overpressure or age. Use rated hoses and install burst valves.
8. Why does my engine stall during use?
Dirty carburetors or fuel issues are common. Clean filters and use fresh gas.
9. Is it safe to power wash near electrical outlets?
Keep 20 feet away and use GFCI-protected cords. Ground all equipment.
10. How do nozzle angles affect cleaning?
Narrow angles (0-15 degrees) provide high impact for stains but cover less area. Wide (25-40 degrees) suits general rinsing.
